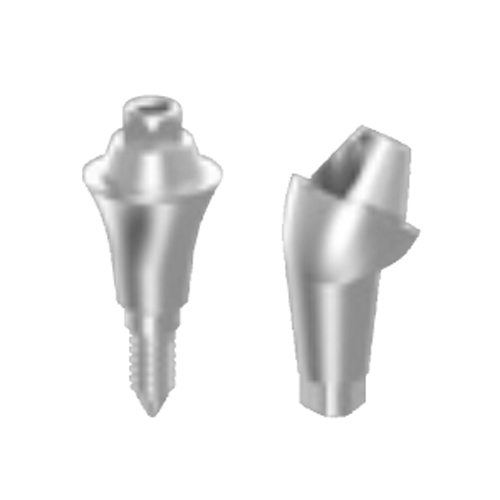

4.8 mm Multi-Unit Abutments

Multiple-unit or full-arch restorations screw-retained on Axiom® REG/PX implants

Ø 4.8 mm Multi-Unit abutments	Angulation (??)	Gingival height (Gh)	Product reference
Non-indexed straight abutment Supplied with pre-assembled prehensile tool.	0°	0.75 mm	OPMU0-0
		1.5 mm	OPMU0-1
		2.5 mm	OPMU0-2
		3.5 mm	OPMU0-3
		4.5 mm	OPMU0-4
Indexed 18° angled abutment Supplied with pre-assembled prehensile tool and M1.6 MU Black Tite® definitive screw	18°	1.5 mm	OPMU18-1 IN
		2.5 mm	OPMU18-2 IN
		3.5 mm	OPMU18-3 IN
Indexed 30° angled abutment Supplied with pre-assembled prehensile tool and M1.6 MU Black Tite® definitive screw	30°	0.75 mm	OPMU30-0 IN
		1.5 mm	OPMU30-1 IN
		2.5 mm	OPMU30-2 IN
		3.5 mm	OPMU30-3 IN
Non-indexed 18° angled abutment Supplied with pre-assembled prehensile tool and M1.6 MU Black Tite® definitive screw.	18°	1.5 mm	OPMU18-1
		2.5 mm	OPMU18-2
		3.5 mm	OPMU18-3
Non-indexed 30° angled abutment Supplied with pre-assembled prehensile tool and M1.6 MU Black Tite® definitive screw	30°	0.75 mm	OPMU30-0
		1.5 mm	OPMU30-1
		2.5 mm	OPMU30-2
		3.5 mm	OPMU30-3
